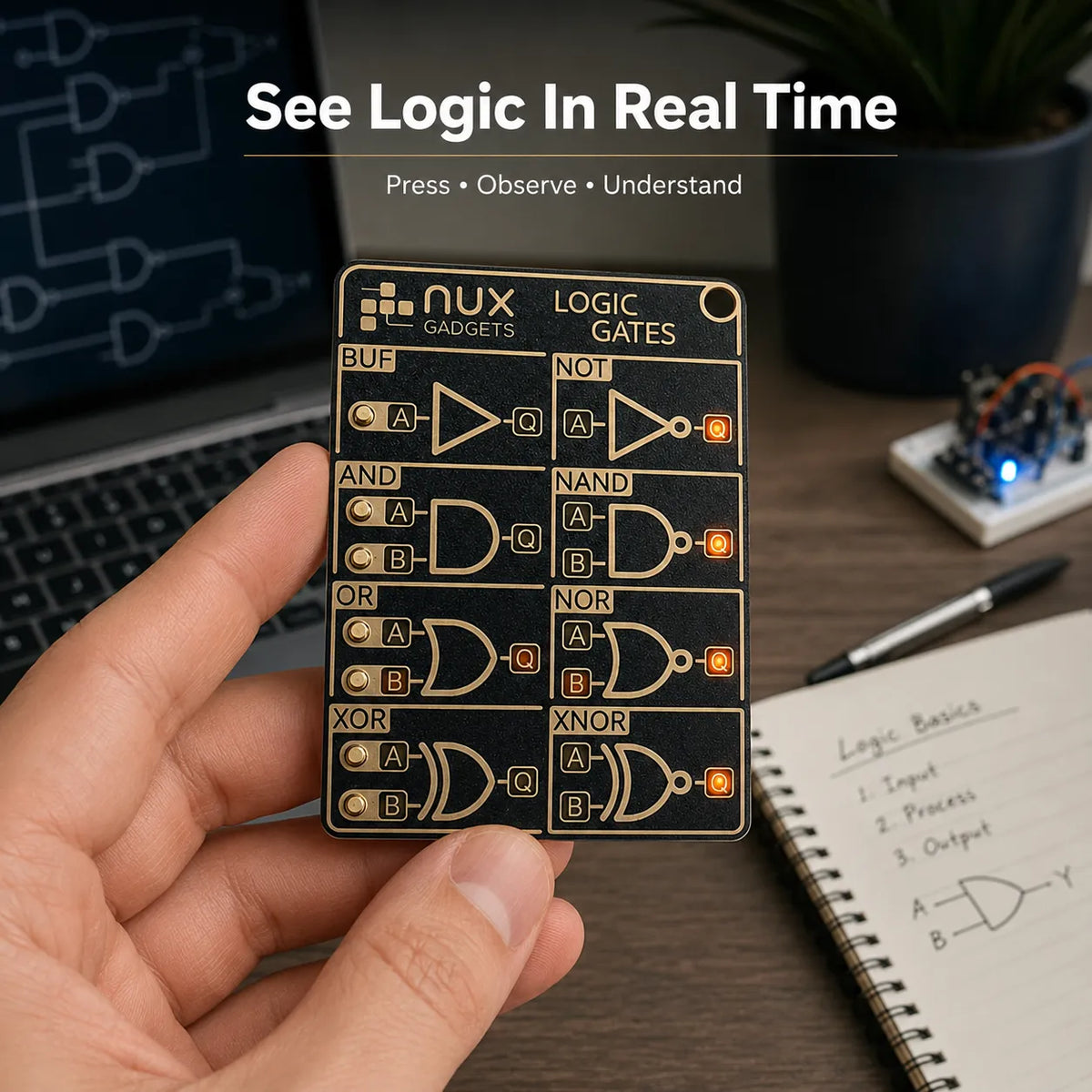

Interactive Logic Gate Circuit Board
Ever wondered how a computer makes decisions? Turns invisible digital operations into something you can touch, test, and understand.
Turn Abstract Digital Logic Into A Hands-On Experience
Behind every smartphone, laptop, and smart device are millions of tiny logic gates working together. Traditional logic circuits can feel confusing when they only exist as formulas on paper.
With built-in input buttons and LED feedback, you can instantly see how different logic rules work — no wiring, no complicated setup, just press and discover!
Key Features & Engineering Highlights
8 Essential Logic Gates In One Board:
BUF: Signal follows input directly
NOT: Reverses the input signal
AND: Output activates only when both inputs are ON
NAND: Opposite behavior of AND gate
OR: Activates when either input is ON
NOR: Activates only when both inputs are OFF
XOR: Detects different input states
XNOR: Detects matching input states
Real-Time LED Logic Feedback:
Forget memorizing truth tables! Every button press creates an immediate visual response:
LED ON = Logic High “1”
LED OFF = Logic Low “0”
Perfect Learning Tool For Digital Electronics:
Designed to make electronic concepts easier to understand. Ideal for digital logic lessons, electronics experiments, computer science fundamentals, classroom demonstrations, and STEM learning projects.
Premium Industrial Circuit Design:
Features a sleek black PCB with gold-plated circuit traces, standard international logic gate symbols, and reserved mounting holes. The exposed circuit aesthetic creates a unique technology-inspired desktop piece!
How To Use The Logic Gate Board
Step 1: Choose the logic gate section you want to explore.
Step 2: Press the metal touch input contacts to activate the input signal (Pressed = High/1, Released = Low/0).
Step 3: Observe the LED output ( Light ON = Output 1, Light OFF = Output 0).
Step 4: Try different input combinations and compare how each gate behaves!
Perfect Usage Scenarios:
Product Specifications
Product Type: Interactive Logic Gate Demonstration Board
Material: PCB Circuit Board + High-Grade Electronic Components
Board Aesthetics: Black PCB With Gold Circuit Traces
Logic Units (8 Gates): BUF, NOT, AND, NAND, OR, NOR, XOR, XNOR
Input Method: Press-Type Metal Touch Contacts
Output Display: Bright LED Indicator Lights
Power & Setup: Built-In Circuit Power System (No External Wiring Required)
Frequently Asked Questions
Q: Do I need electronic knowledge to use it?
A: No! The board is designed for beginners. Simply press the input contacts and observe the LED response instantly.
Q: Does it require complicated wiring?
A: No. Everything is integrated directly onto the PCB. No breadboards, jumper wires, or extra circuit assembly needed.
Q: Who is this product suitable for?
A: It is suitable for students, electronics beginners, teachers, hobbyists, makers, and anyone curious about how digital logic works.
Q: Can it be used as a classroom demonstration tool?
A: Yes! The clear, real-time LED feedback makes it effortless for teachers to demonstrate logic gate principles to a group.
Built For Learning, Exploring & Discovering
Understanding computers starts with understanding logic. Visual learning replaces memorizing formulas — explore the foundation of modern technology!
Press. Observe. Understand. Discover how electronics think!
